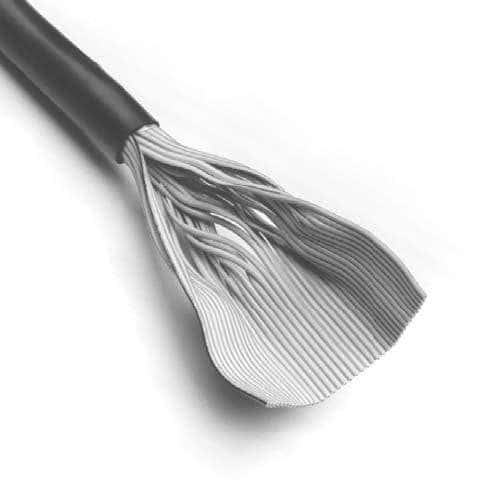

40-conductor, 28AWG round flat cable featuring a 1.27mm pitch and 9.9mm overall diameter. Constructed with copper conductors and a PVC jacket, this unshielded cable offers a 300V voltage rating and operates between -20°C and 80°C. Characteristic impedance is 133 Ohms, with a capacitance of 54.8pF. Available in black, this RoHS compliant cable is supplied on a 30.48m/91.44m roll.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 3759/40 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M 3759/40 technical specifications.
| Approvals | UL |
| Cable Pitch | 1.27mm |
| Capacitance | 54.8pF |
| Package/Case | 100 |
| Characteristic Impedance | 133R |
| Color | Black |
| Conductor Material | Copper |
| Contact Plating | Tin |
| Diameter | 0.03inch |
| Impedance | 90R |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 40 |
| Number of Cores | 40 |
| Number of Strands | 7 |
| Number of Ways | 40 |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 7X36 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 49.5mm |
| Wire/Cable Diameter | 9.9mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Ribbon, Flat, Round, Flat Flex |
| RoHS | Compliant |
