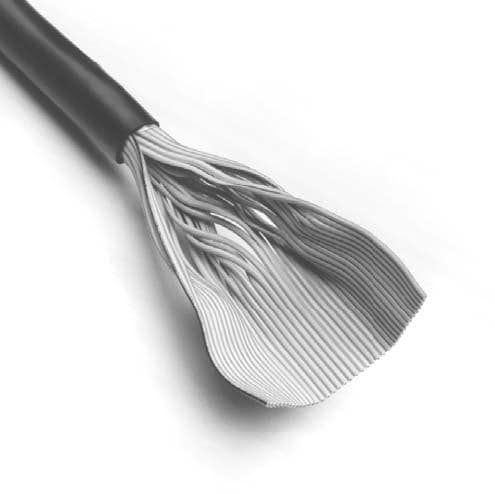

50-conductor flat cable, 28AWG, featuring copper conductors with 7x36 stranding. This unshielded cable operates within a -20°C to 80°C temperature range and has a 300V voltage rating. Key electrical specifications include a characteristic impedance of 133 Ohms and a capacitance of 54.8pF. The cable is constructed with a black PVC jacket and has a pitch of 1.27mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 3759/50 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M 3759/50 technical specifications.
| Approvals | UL |
| Capacitance | 54.8pF |
| Characteristic Impedance | 133R |
| Color | Black |
| Conductor Material | Copper |
| Diameter | 0.03inch |
| Impedance | 90R |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 50 |
| Number of Cores | 50 |
| Number of Strands | 7 |
| Number of Ways | 50 |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 7X36 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 62.2mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round, Flat, Flat Flex |
| RoHS | Compliant |
