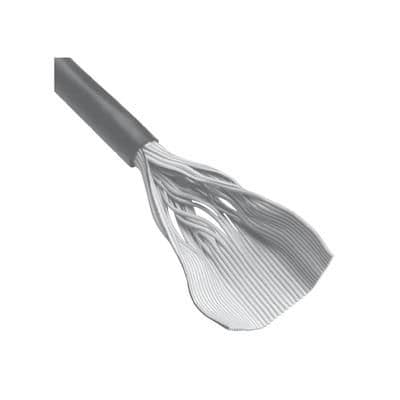

50-conductor, 28AWG flat ribbon cable, 11.2mm width, featuring copper conductors with a red first conductor mark. This unshielded cable utilizes PVC insulation and jacket, operating within a -20°C to 80°C temperature range and rated for 300V. Supplied in a 100-foot bulk package, it offers a 50-position configuration.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3759/50 100SF technical specifications.
General
Package/Case
100
Color
Black
Conductor Material
Copper
First Conductor Mark
Red
Halogen Free
Not Halogen Free
Insulation Material
PVC
Jacket Material
PVC
Lead Free
Lead Free
Length
100foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
50
Number of Positions
50
Outside Diameter
62.2mm
Packaging
Bulk
Series
3759
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
Weight
12.5lb
Width
11.2mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Round, Flat
Compliance
RoHS
Compliant
Datasheet
3M 3759/50 100SF Datasheet
Download the complete datasheet for 3M 3759/50 100SF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
