3M
3759/64

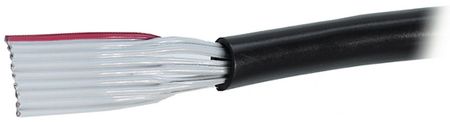

Round Flat Cable Polyvinyl Chloride 64Conductors 28AWG 12.7mm 300V Black 30.48m/91.44m Roll
Capacitance54.8pF
Voltage Rating50V
MountingCable
Quick Jump:
Technical Specifications
3M 3759/64 technical specifications.
General
Cable Pitch
1.27mm
Capacitance
54.8pF
Characteristic Impedance
133R
Color
Black, Grey
Conductor Material
Copper
Contact Plating
Tin
Impedance
90R
Jacket Material
PVC
Mount
Cable
Number of Conductors
64
Number of Strands
7
Number of Ways
64
Packaging
Tape and Reel
Pitch
1.27mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Shielding
Unshielded
Voltage Rating
50V
Width
80mm
Wire/Cable Diameter
12.7mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Round, Flat
Compliance
RoHS
Compliant
Datasheet
3M 3759/64 Datasheet
Download the complete datasheet for 3M 3759/64 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
