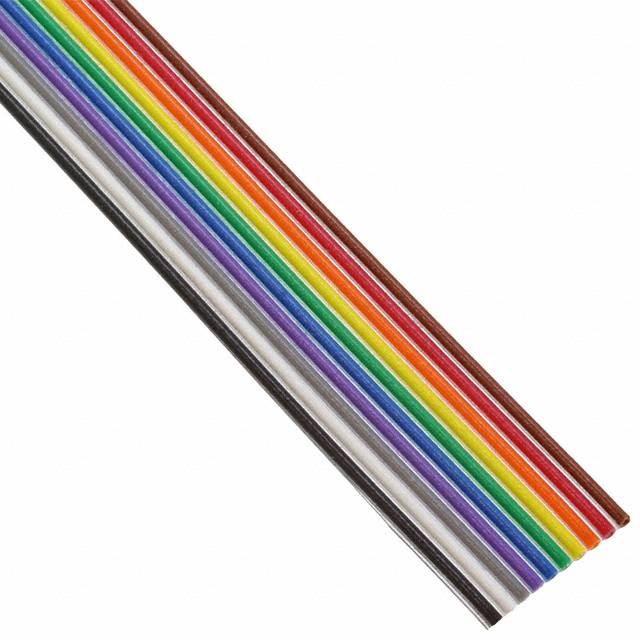

Flat ribbon cable featuring 10 conductors, each 26AWG stranded copper (7 x 34), with a 0.05-inch pitch. Insulated and jacketed with PVC, this unshielded cable operates within a temperature range of -20°C to 105°C and is rated for 300V. Available in multiple colors, the bulk cable comes in a 300-foot length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 3811/10 300 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M 3811/10 300 technical specifications.
| Package/Case | 300 |
| Color | Multiple |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 300foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 10 |
| Pitch | 0.05inch |
| Series | 3811 |
| Shielding | Unshielded |
| Stranding | 7 x 34 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Flat |
| RoHS | Compliant |
