50-conductor flat ribbon cable, 26AWG, featuring a 1.27mm pitch and 300V voltage rating. Constructed with copper conductors and a PVC jacket, this cable offers 95-ohm impedance and 48.6pF capacitance. Operating temperature range is -20°C to 105°C. RoHS compliant and UL approved.
Package100
Capacitance48.6pF
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3811/50 technical specifications.
General
| Approvals | UL |
| Cable Pitch | 1.27mm |
| Capacitance | 48.6pF |
| Package/Case | 100 |
| Color | Multiple, Brown |
| Conductor Material | Copper |
| Impedance | 95R |
| Inductance | 0.43uH |
| Jacket Material | PVC |
| Lead Length | 3m |
| Length | 3m |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 50 |
| Number of Cores | 50 |
| Packaging | Roll |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensing Distance | 3m |
| Stranding | 7X34 |
| Voltage Rating | 300V |
| DC Rated Voltage | 50V |
| Width | 231mm |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Ribbon, Flat, Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
3M 3811/50 Datasheet
Download the complete datasheet for 3M 3811/50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

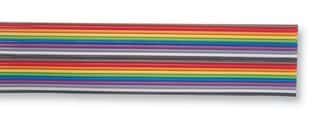

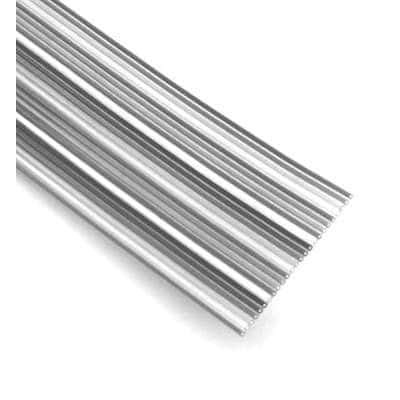

Product Images
