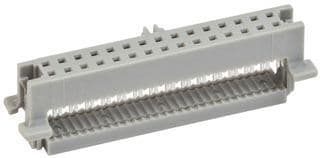

14-position, 2-row female socket connector with 1.27mm pitch and row spacing. Features IDC termination for 30AWG ribbon cable, rated for 1A current and 125V AC/1.25kV AC voltage. Constructed with copper alloy contacts and gold plating, operating between -55°C and 105°C. This free-hanging, cable mount receptacle has a UL94 V-0 flammability rating and is RoHS compliant.
Voltage Rating125V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
3M 45114-010030 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 288 |
| Packaging | Tray |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 1.27mm |
| Series | 451 |
| Termination | IDC |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 1.25kV |
| Wire/Cable Gauge | 30AWG |
| Wire/Cable Type | Ribbon |
Compliance
| RoHS | Compliant |
