4660-6000

Datasheet

60 Pos 2.54mm RA Header, Male Pin, 1A, Gold, IDT

4660-6000

Name: 4660-6000 3M
Brand: 3M
SKU: 4660-6000

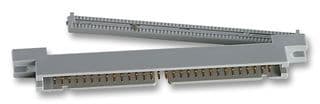

60 Pos 2.54mm RA Header, Male Pin, 1A, Gold, IDT

60-position, 2-row right-angle shrouded header with 2.54mm pitch for board-to-board and mezzanine applications. Features male pin contacts made of copper alloy with gold plating, rated for 1A current and 350V working voltage. Designed for cable mounting with Insulation Displacement Termination (IDT) for discrete or ribbon wire up to 28AWG. Constructed from PBT, glass, and polyester with a UL94 V-0 flammability rating and a grey housing. Offers 200 mating cycles and operates within a temperature range of -55°C to 105°C.

Voltage Rating350V

Current Rating1A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

3M 4660-6000 technical specifications.

General

Color	Grey
Contact Gender	Male
Contact Material	Copper Alloy, Bronze
Contact Mating Length	6.1mm
Contact Plating	Gold
Contact Type	Male Pin
Current Rating	1A
Depth	8.4mm
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Grey
Lead Free	Lead Free
Lead Pitch	2.54mm
Length	101.6mm
Material	PBT, Glass, Polyester
Mating Cycles	200
Max Current Rating	1A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Free Hanging, Cable
Number of Contacts	60
Number of Poles	60
Number of Positions	60
Number of Rows	2
Orientation	Right Angle
Package Quantity	100
Packaging	Bulk
Pitch	2.54mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	4600
Termination	IDT
Weight	3.6lb
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Type	Discrete, Ribbon
Working Voltage	350V
