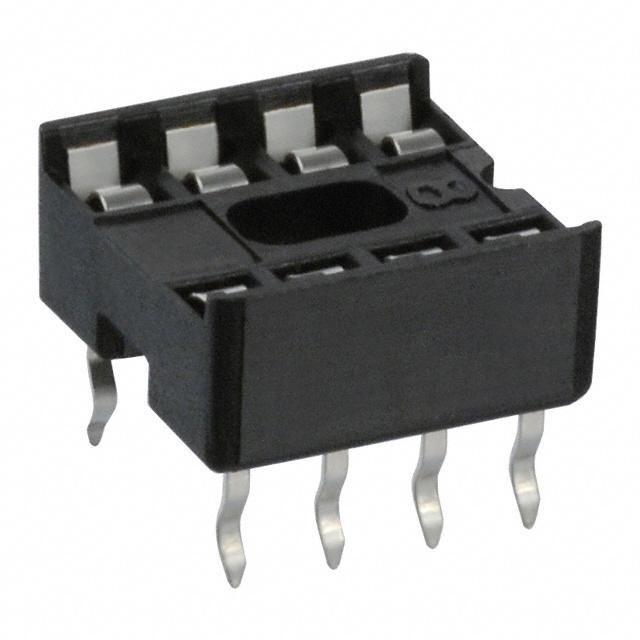

8-Pin DIP Socket, 2.54mm Pitch, Through Hole, 1A, 100V

4808-3004-CP

Name: 4808-3004-CP 3M
Brand: 3M
SKU: 4808-3004-CP

8-Pin DIP Socket, 2.54mm Pitch, Through Hole, 1A, 100V

Through-hole mount IC socket featuring 8 contacts and 8 positions arranged in 2 rows with a 2.54mm pitch and 7.62mm row spacing. This female, straight orientation socket utilizes Type D contacts made of bronze with tin plating for mating. It offers a 1A current rating and 100V AC voltage rating, operating within a -25°C to 85°C temperature range. Constructed with polyester insulation, it is UL94 V-0 flammability rated and lead-free.

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

3M 4808-3004-CP technical specifications.

General

Contact Finish - Mating	TIN
Contact Material	Bronze
Contact Plating	Tin
Contact Type	Type D
Current Rating	1A
Depth	10.16mm
Flammability Rating	UL94 V-0
Gender	Female
Insulation Material	Polyester
Lead Free	Lead Free
Length	10.03mm
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Mount	Through Hole
Number of Contacts	8
Number of Positions	8
Number of Rows	2
Orientation	Straight
Package Quantity	100
Packaging	Rail/Tube
Pitch	2.54mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	7.62mm
Series	4800
Termination	Solder
Voltage Rating (AC)	100V
Width	10.16mm
