Technical Specifications

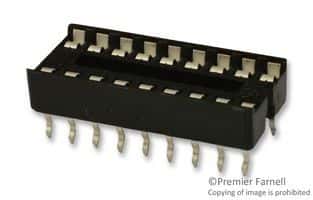

3M 4818-3004-CP technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Plating
Tin, Nickel
Contact Type
Type D
Current Rating
1A
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
22.73mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Contacts
18
Number of Positions
18
Number of Rows
2
Package Quantity
100
Packaging
Rail/Tube
Pitch
2.54mm
Row Spacing
7.62mm
Series
4800
Termination
Solder
Voltage Rating (AC)
100V
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
3M 4818-3004-CP Datasheet
Download the complete datasheet for 3M 4818-3004-CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
