22-contact, right-angle, surface-mount receptacle for telecom and datacom applications. Features a thermoplastic body, copper alloy contacts with gold plating, and a 1.5A current rating. Operates within a -40°C to 85°C temperature range and boasts a UL94 V-0 flammability rating. This lead-free, RoHS-compliant connector is designed for tray packaging.
PackageSMC
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
3M 5622-1200-ML technical specifications.
General
| Body Material | Thermoplastic |
| Package/Case | SMC |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 12.87mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 40.43mm |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 22 |
| Number of Ports | 1 |
| Number of Positions | 22 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1020 |
| Packaging | Tray |
| Pitch | 1.27mm |
| RoHS Compliant | Yes |
| Series | 5622 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M 5622-1200-ML Datasheet
Download the complete datasheet for 3M 5622-1200-ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

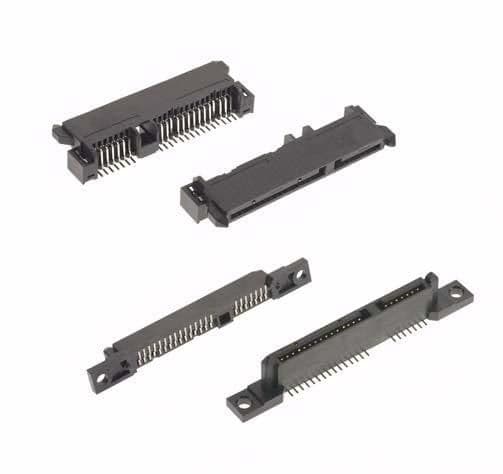

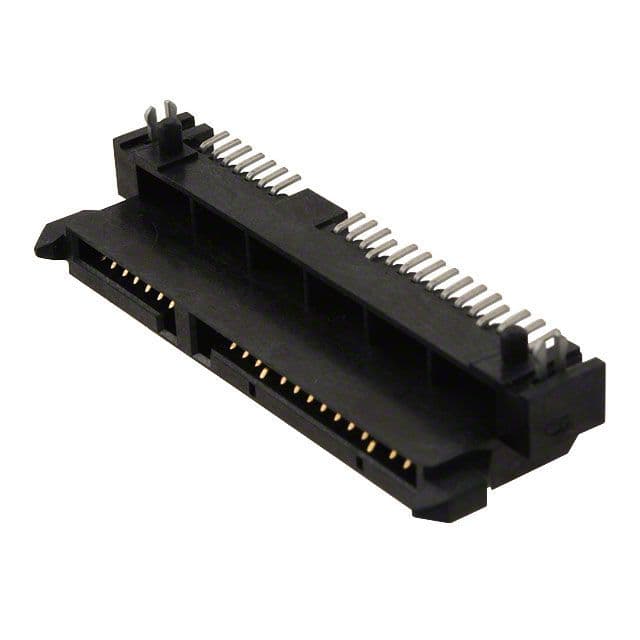

Product Images
