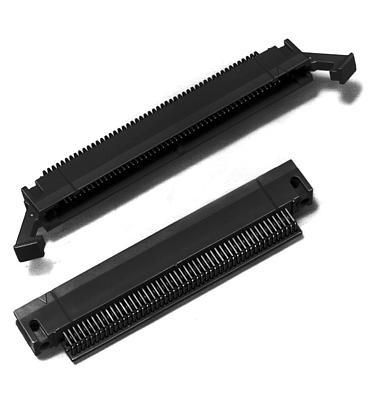

80 Pos 1.27mm Pitch Shrouded Header, Male, SMD, Gold Plated

81080-660C04-RB

Name: 81080-660C04-RB 3M
Brand: 3M
SKU: 81080-660C04-RB

80 Pos 1.27mm Pitch Shrouded Header, Male, SMD, Gold Plated

80-position, 2-row shrouded header with a 1.27mm pitch, designed for board-to-board applications. Features male pin contacts made of copper alloy with gold plating, a 0.14-inch mating length, and a straight, top-entry surface mount orientation. Rated for 500mA current, with a maximum operating temperature of 105°C and a minimum of -55°C. The black housing is lead-free and RoHS compliant, supplied in tray packaging.

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

3M 81080-660C04-RB technical specifications.

General

Color	Black
Contact Material	Copper Alloy
Contact Mating Length	0.14inch
Contact Plating	Gold
Contact Type	Male Pin
Current Rating	500mA
Depth	7.87mm
Gender	Male
Height	10.3mm
Housing Color	Black
Lead Free	Lead Free
Length	65mm
Max Current Rating	750mA
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Positions	80
Number of Rows	2
Orientation	Straight
Package Quantity	100
Packaging	Tray
Pitch	1.27mm
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	810
Termination	Solder
Width	7.87mm
