Flat wire and cable assembly featuring 10 conductors with a 24AWG gauge and 2.54mm pitch. Constructed with copper conductors and tin contact plating, insulated and jacketed with PVC. Offers a maximum operating temperature of 105°C and a minimum of -20°C, with a voltage rating of 300V. This unshielded cable is supplied on a 100-foot roll and is RoHS compliant.
Package100
Voltage300V
Voltage Rating50V
MountingCable
Quick Jump:
Technical Specifications
3M 8125/10 technical specifications.
General
| Cable Pitch | 2.54mm |
| Package/Case | 100 |
| Color | Grey, Red |
| Conductor Material | Copper |
| Contact Plating | Tin |
| Depth | 24.59mm |
| First Conductor Mark | Red |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 10 |
| Packaging | Roll |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 8125 |
| Shielding | Unshielded |
| Voltage | 300V |
| Voltage Rating | 50V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Flat |
Compliance
| RoHS | Compliant |
Datasheet
3M 8125/10 Datasheet
Download the complete datasheet for 3M 8125/10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

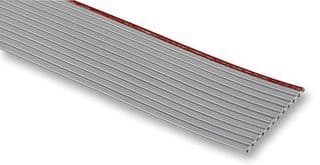

Product Images
