44-position PLCC socket with straight, through-hole mounting and solder termination. Features a 2.54mm pitch and 1.27mm contact pitch, with 4 rows and a 12.7mm row spacing. Constructed with a copper alloy, bronze contact material plated in tin, and polybutylene insulation. Operates within a temperature range of -40°C to 105°C and boasts a UL94 V-0 flammability rating. This RoHS compliant component is supplied in a tube.
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 8444-11B1-RK-TP technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Copper Alloy, Bronze |
| Contact Plating | Tin |
| Contact Type | Type D |
| Depth | 23.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 8mm |
| Insulation Material | Polybutylene |
| Lead Free | Lead Free |
| Length | 23.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 44 |
| Number of Positions | 44 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 875 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 12.7mm |
| Series | 8400 |
| Termination | Solder |
| Width | 23.5mm |
Compliance
| RoHS | Compliant |
Datasheet
3M 8444-11B1-RK-TP Datasheet
Download the complete datasheet for 3M 8444-11B1-RK-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

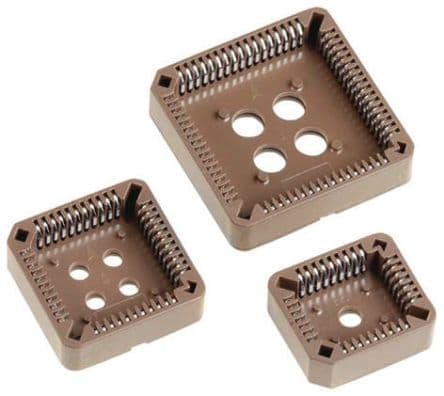

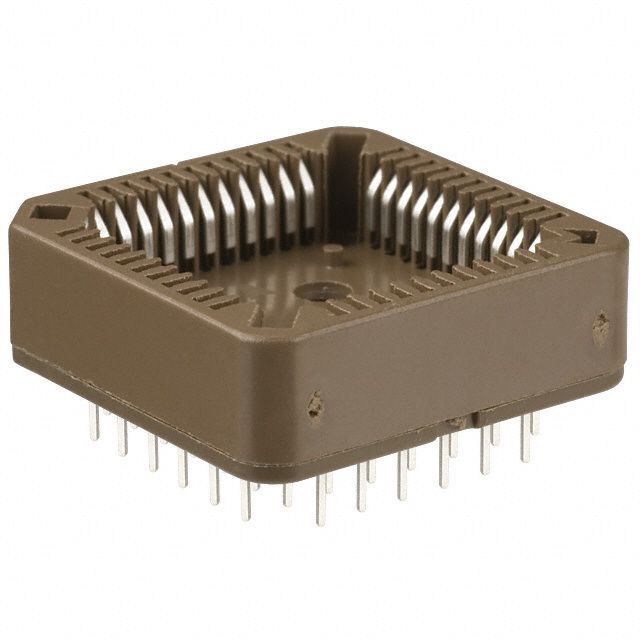

Product Images
