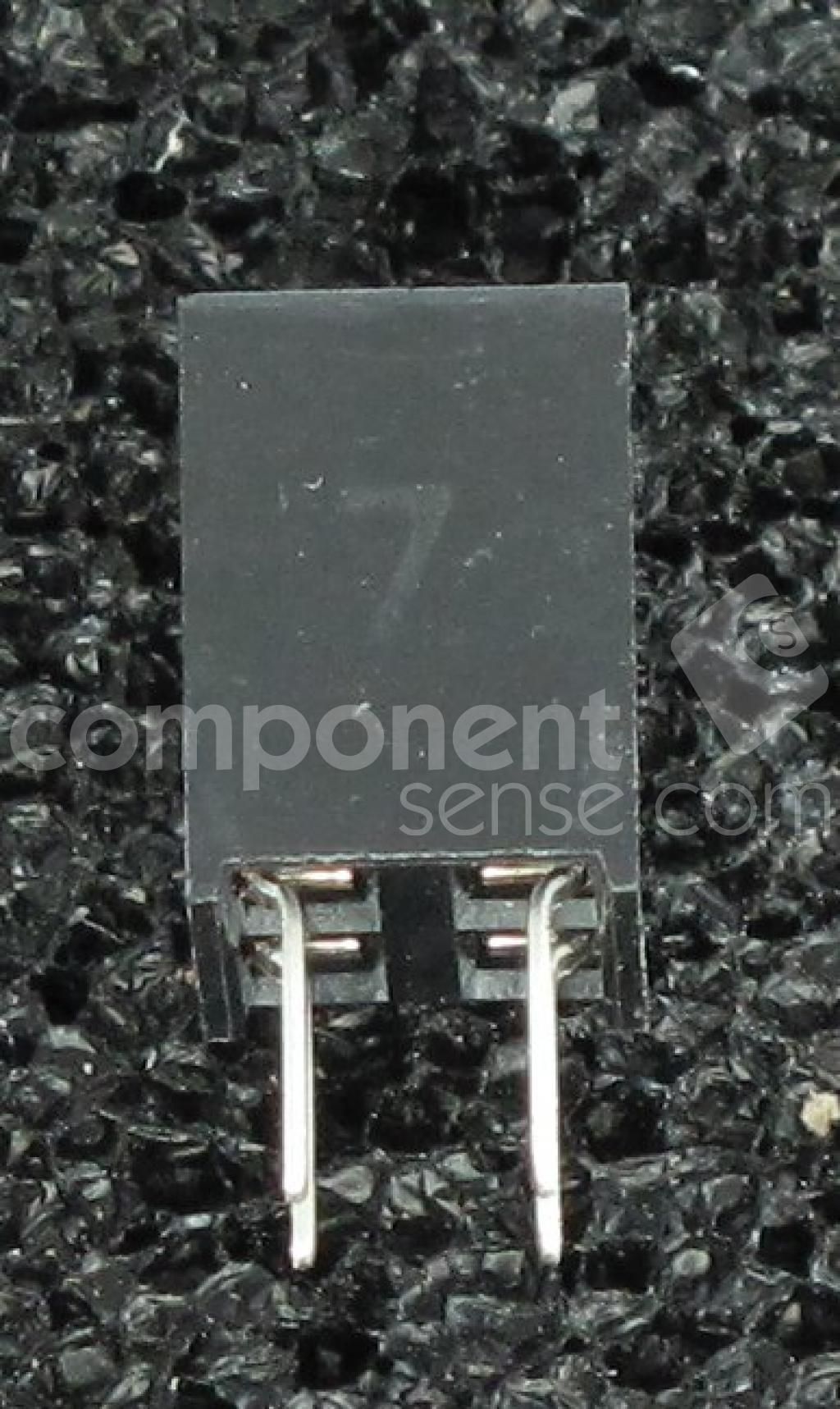

4-position, 2-row female socket rectangular connector with a 2.54mm pitch. Features gold-plated copper alloy contacts with a square shape, suitable for through-hole mounting with solder termination. Rated for 2A maximum current and 1kV DC, operating between -25°C and 105°C. The black thermoplastic housing offers UL94 V-0 flammability resistance.
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 960204-6202-AR technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Length | 5.08mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1305 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 960 |
| Termination | Solder |
| DC Rated Voltage | 1kV |
Compliance
| RoHS | Compliant |
