16-position, 2-row male header connector with gold-plated copper alloy contacts. Features a 2.54mm pitch and 0.1-inch row spacing, designed for through-hole mounting with solder termination. Rated for 2A current and operates within a temperature range of -25°C to 105°C. The black housing is UL94 V-0 flammability rated.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 961216-6404-AR technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Mating Length | 0.22inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Length | 20.32mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | 961 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M 961216-6404-AR Datasheet
Download the complete datasheet for 3M 961216-6404-AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

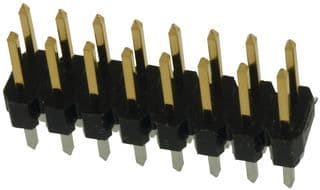

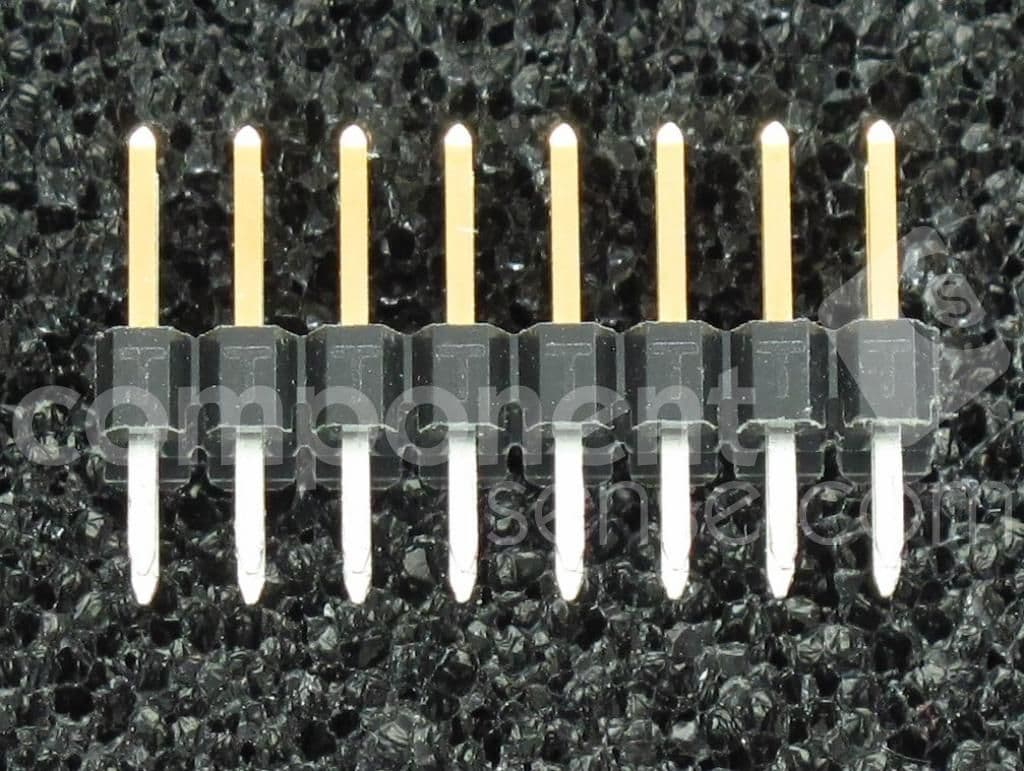

Product Images
