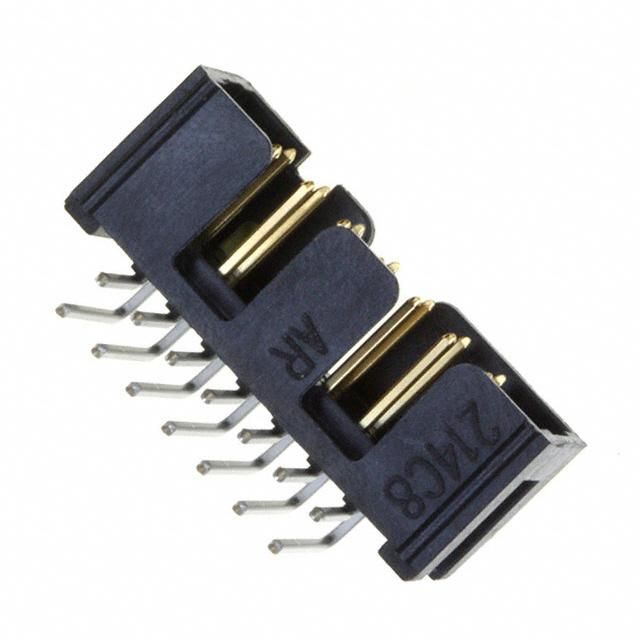

Right-angle shrouded header with 14 positions and 2 rows, featuring a 2.54mm pitch. Male pin contacts made of brass with gold plating offer a 2A current rating and 0.243-inch mating length. The black housing is designed for through-hole mounting with a 2.84mm contact post length.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M D2514-5002-AR technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.243inch |
| Contact Plating | Gold |
| Contact Post Length | 2.84mm |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 12.44mm |
| Gender | Male |
| Housing Color | Black |
| Max Current Rating | 2A |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 616 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | D2500 |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
3M D2514-5002-AR Datasheet
Download the complete datasheet for 3M D2514-5002-AR to view detailed technical specifications.
