30-position, 2-row shrouded header with straight, through-hole mounting and solder termination. Features male pin contacts made of brass with gold plating, a 2.54mm pitch, and 0.1-inch row spacing. Rated for 2A current and operates within a temperature range of -55°C to 105°C. Housing color is black.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M D2530-6002-AR technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.243inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 8.59mm |
| Gender | Male |
| Housing Color | Black |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 336 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | D2500 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M D2530-6002-AR Datasheet
Download the complete datasheet for 3M D2530-6002-AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

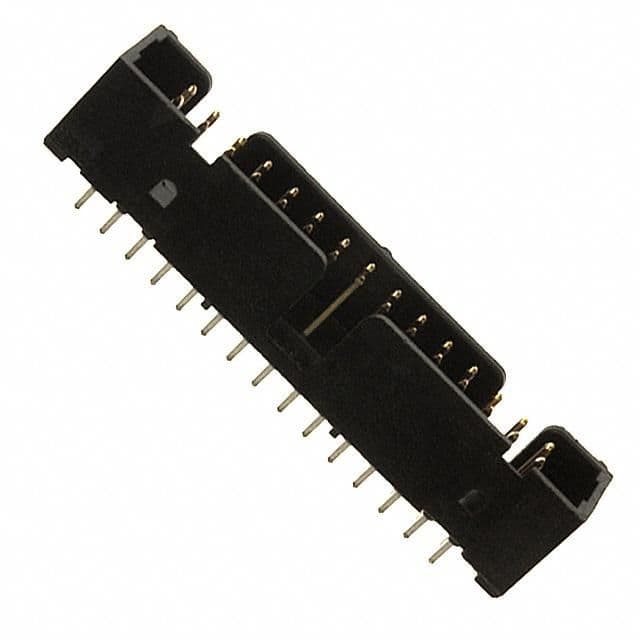

Product Images
