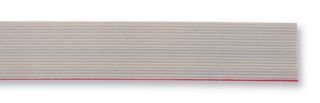

This 100ft flat flex cable features 16 conductors with a 28AWG wire/cable gauge and a characteristic impedance of 107R. The cable has a voltage rating of 300V and is made with copper conductor material and polyolefin jacket material. It is unshielded and has a 7x36 stranding. The cable is RoHS compliant and has a width of 0.8inch and a pitch of 0.05inch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M HF365/16 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M HF365/16 technical specifications.
| Capacitance | 27.552pF |
| Package/Case | 100 |
| Characteristic Impedance | 168R |
| Color | Grey |
| Conductor Material | Copper |
| Impedance | 107R |
| Jacket Material | Polyolefin |
| Length | 100foot |
| Mount | Cable |
| Number of Conductors | 16 |
| Number of Cores | 16 |
| Number of Strands | 7 |
| Number of Ways | 16 |
| Pitch | 0.05inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 7X36 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 0.8inch |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Flat, Flat Flex, Ribbon |
| RoHS | Compliant |
