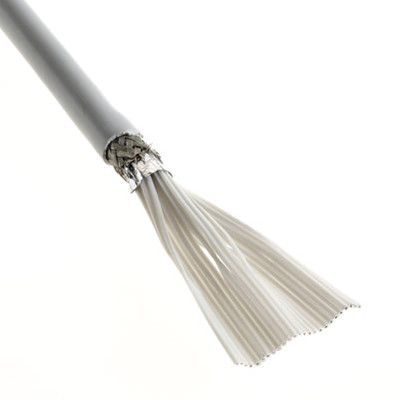

This shielded flat cable features 20 conductors with a 28AWG wire/cable type, suitable for operating temperatures between -15°C and 75°C. The cable is made from copper conductors, polyolefin insulation, and polyolefin jacket material. It is RoHS compliant and available in various wire/cable types including round, flat, and flat flex. The cable is rated for a maximum operating voltage of 150V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M HF659/20 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
3M HF659/20 technical specifications.
| Color | Grey |
| Conductor Material | Copper |
| First Conductor Mark | Blue |
| Insulation Material | PO |
| Jacket Material | Polyolefin |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -15°C |
| Mount | Cable |
| Number of Conductors | 20 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HF659 |
| Shielding | Shielded |
| Voltage | 150V |
| Voltage Rating | 50V |
| DC Rated Voltage | 150V |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round, Flat, Flat Flex |
| RoHS | Compliant |
