26-position, 2-row right-angle receptacle with a 2.54mm pitch, designed for telecom and datacom applications. Features gold-plated copper alloy contacts, a shielded beige housing, and through-hole panel mount termination. Rated for 1A current and operates between -55°C and 105°C, with UL94 V-0 flammability. This lead-free, RoHS compliant component offers a solder terminal connection.
Current Rating1A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
3M N10226-5212PC technical specifications.
General
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
1A
Depth
16.7mm
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Beige
Insulation Material
Glass
Lead Free
Lead Free
Lead Length
3m
Length
37.2mm
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
55°C
Mount
Through Hole, Panel
Number of Contacts
26
Number of Ports
1
Number of Positions
26
Number of Rows
2
Orientation
Right Angle
Package Quantity
100
Pitch
2.54mm
Plating
Gold
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensing Distance
3m
Series
102, Mini D Ribbon (MDR)
Termination
Solder
Width
13.9mm
Compliance
RoHS
Compliant
Datasheet
3M N10226-5212PC Datasheet
Download the complete datasheet for 3M N10226-5212PC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

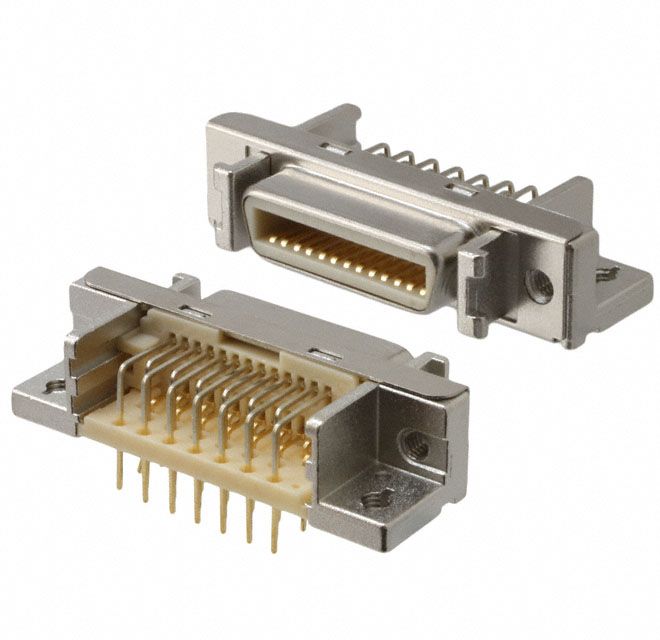

Product Images
