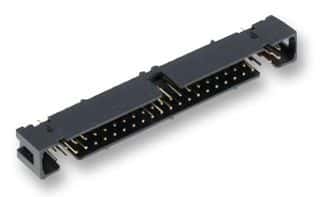

Shrouded header with 30 positions and 2 rows, featuring a 2.54mm pitch and straight, through-hole mounting. Male pin contacts made of copper alloy with gold plating ensure reliable connections. Rated for 1A current, with a maximum operating temperature of 105°C and a flammability rating of UL94 V-0. Black housing and a 3.94mm contact post length are included.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M N2530-6003-RB technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Copper Alloy, Copper
Contact Mating Length
0.243inch
Contact Plating
Gold
Contact Post Length
3.94mm
Contact Type
Male Pin
Current Rating
1A
Depth
8.59mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Length
45.42mm
Max Current Rating
1.75A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
30
Number of Positions
30
Number of Rows
2
Orientation
Straight
Package Quantity
336
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
2500
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
3M N2530-6003-RB Datasheet
Download the complete datasheet for 3M N2530-6003-RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
