50-position, 2-row shrouded header for board-to-board applications. Features a 2.54mm pitch, straight orientation, and top entry. Constructed with a black molded housing and glass insulation, it utilizes male pin contacts made of copper alloy with gold plating for mating. Rated for 2A current and operating temperatures from -55°C to 105°C, this surface mount component is UL approved and RoHS compliant.
PackageMolded
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
3M N2550-6V0C-RB-WG technical specifications.
General
| Approvals | UL |
| Package/Case | Molded |
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 8.59mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Lead Free | Lead Free |
| Length | 70.82mm |
| Max Current Rating | 1.75A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 200 |

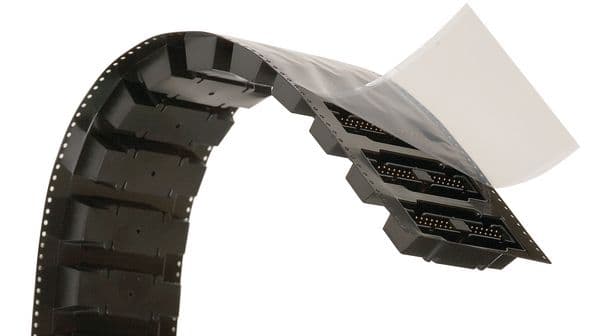

| Packaging | Tape and Reel |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | 2500 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
