64-position, 2-row rectangular box header with straight solder tail termination. Features male pin contacts made of copper alloy with gold plating, offering a 2A current rating and 350V voltage rating. Operates within a -55°C to 105°C temperature range, with a 2.54mm pitch and 0.100-inch row spacing. Housing is black, UL94 V-0 flammability rated, and designed for through-hole mounting.
Voltage Rating350V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M N2564-6002RB technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy, Bronze, Gold |
| Contact Mating Length | 0.243inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 8.59mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 9.91mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 88.6mm |
| Mating Cycles | 200 |
| Max Current Rating | 1.75A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 64 |
| Number of Poles | 64 |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 168 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1A |
| Row Spacing | 0.1inch |
| Series | 2500 |
| Termination | Solder |
| Voltage Rating (AC) | 350V |
| Working Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
3M N2564-6002RB Datasheet
Download the complete datasheet for 3M N2564-6002RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

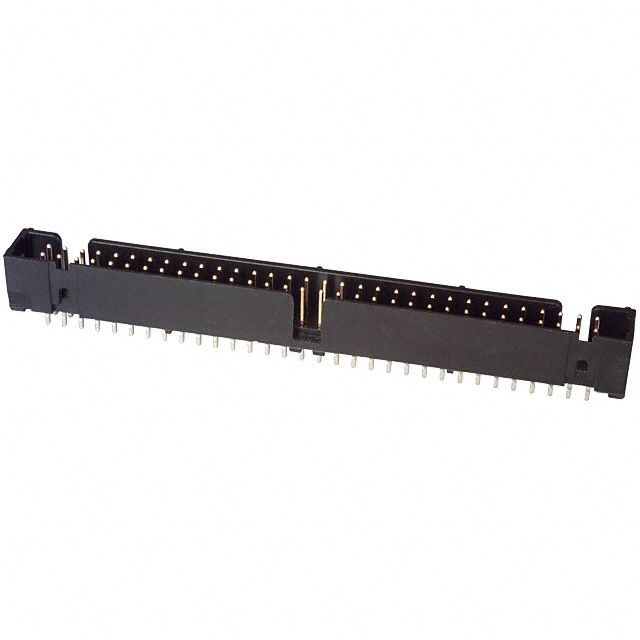

Product Images
