64-position, 2-row straight shrouded header with 2.54mm lead pitch and 0.1-inch row spacing. Features male pin contacts made of copper alloy, bronze, and copper with gold plating, rated for 2A current and 350V working voltage. Designed for through-hole mounting with solder termination, offering a mating length of 0.24 inches and 200 mating cycles. Operating temperature range from -55°C to 105°C, with a UL94 V-0 flammability rating and black housing.
Voltage Rating350V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M N3764-6302RB technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy, Bronze, Copper |
| Contact Mating Length | 0.24inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 8.6mm |
| Flammability Rating | UL94 V-0 |
| Height | 27.2mm |
| Housing Color | Black |
| Lead Pitch | 2.54mm |
| Length | 100.71mm |
| Mating Cycles | 200 |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 64 |
| Number of Poles | 64 |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | 3000 |
| Termination | Solder |
| Voltage Rating (AC) | 350V |
| DC Rated Voltage | 350V |
| Working Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
3M N3764-6302RB Datasheet
Download the complete datasheet for 3M N3764-6302RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

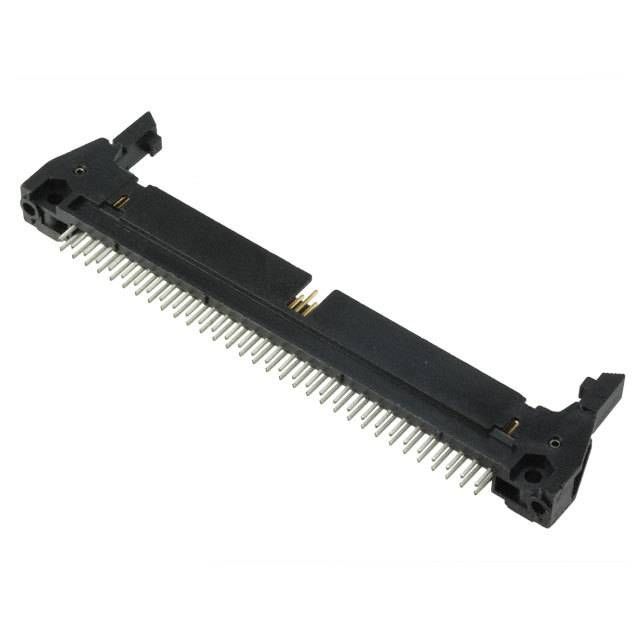

Product Images
