40-position, 2-row shrouded header with straight, through-hole mounting and solder termination. Features copper alloy contacts with gold plating and a center strip contact design. Rated for 500mA current and operates within a temperature range of -55°C to 85°C. Constructed from black, UL94 V-0 rated material.
Current Rating500mA
MountingThrough Hole
Quick Jump:
Technical Specifications
3M P50E-040P1-S1-EA technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Center Strip Contact |
| Current Rating | 500mA |
| Depth | 7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 40.53mm |
| Max Current Rating | 500mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 204 |
| Packaging | Bulk |
| Pitch | 0.05inch |
| RoHS Compliant | Yes |
| Series | Pak 50, P50E |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M P50E-040P1-S1-EA Datasheet
Download the complete datasheet for 3M P50E-040P1-S1-EA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

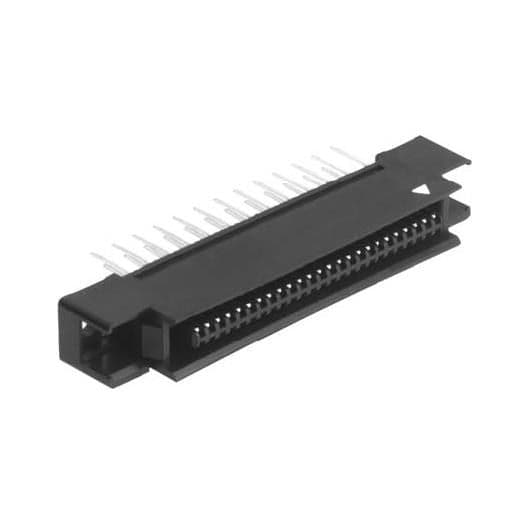

Product Images
