80-position, 2-row card edge connector with 0.8mm pitch and 1.57mm row spacing. Features cantilever contacts made of gold-plated copper alloy, housed in black polymer for surface mount applications. Rated for 3A maximum current and 50V AC maximum voltage, operating from -55°C to 125°C. Designed for 0.062-inch thick cards with straight orientation and solder termination.
MountingSurface Mount
Quick Jump:
Technical Specifications
3M SPD08-080-L-RB-TR technical specifications.
General
| Card Thickness | 0.062inch |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Cantilever |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Material | Polymer |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Contacts | 80 |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 1.57mm |
| Series | SPD08 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M SPD08-080-L-RB-TR Datasheet
Download the complete datasheet for 3M SPD08-080-L-RB-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

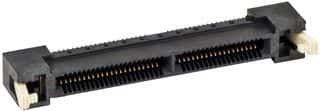

Product Images
