0.96-inch smart OLED display module featuring a 96x64 pixel resolution and a high 5000:1 contrast ratio. This display module offers a wide 160° viewing angle and operates via a UART interface. It has a compact form factor with dimensions of 32.7mm (length) x 26.7mm (width) x 13.2mm (depth) and a viewing area of 20.1mm (width) x 13.4mm (height). Operating within a temperature range of -30°C to 75°C, it requires a 5.5V supply voltage and has a maximum power dissipation of 1W.
MountingPCB
Power1W
Quick Jump:
Technical Specifications
4D Systems uOLED-96-G2 technical specifications.
General
| Contrast Ratio | 5000:1 |
| Depth | 13.2mm |
| Diagonal Size | 0.96inch |
| Height | 13.2mm |
| Interface | UART |
| Length | 32.7mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -30°C |
| Mount | PCB |
| Operating Supply Voltage | 5.5V |
| Packaging | Bulk |
| Power Dissipation | 1W |
| Reach SVHC Compliant | Unknown |
| Resolution (height) | 64pixel |
| Resolution (width) | 96pixel |
| Viewing Angle | 160° |
| Viewing Area (height) | 13.4mm |
| Viewing Area (width) | 20.1mm |
| Width | 26.7mm |
Compliance
| RoHS | Compliant |
Datasheet
4D Systems uOLED-96-G2 Datasheet
Download the complete datasheet for 4D Systems uOLED-96-G2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

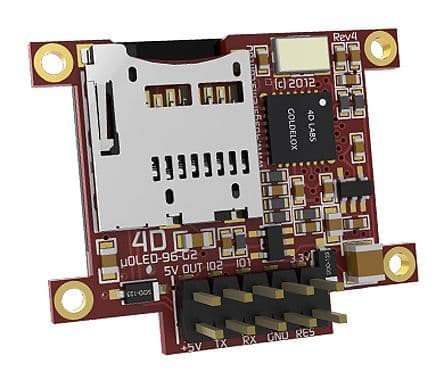

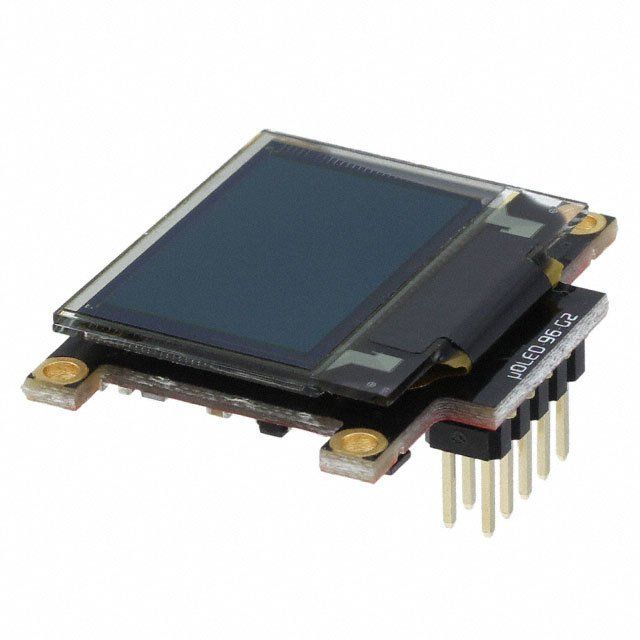

Product Images
