Silicone rubber thermal pad, 0.92W/m.°C thermal conductivity, 5.7x10¹⁵ Ohm.cm electrical resistivity. Features UL94 V-0 flammability rating and lead-free composition. Rectangular shape, 18.42mm length, 13.21mm width, and 0.006-inch thickness. Available in green and grey colors, supplied in bulk packaging with 2000 units.
MountingHardware
Quick Jump:
Technical Specifications
Aavid 53-77-9G technical specifications.
General
| Color | Green, Grey |
| Contact Plating | Tin, Matte |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 18.42mm |
| Material | Silicone, Rubber |
| Mount | Hardware |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Series | Thermalsil™III |
| Shape | Rectangular |
| Thickness | 0.006inch |
| Width | 13.21mm |
Compliance
| RoHS | Compliant |
Datasheet
Aavid 53-77-9G Datasheet
Download the complete datasheet for Aavid 53-77-9G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

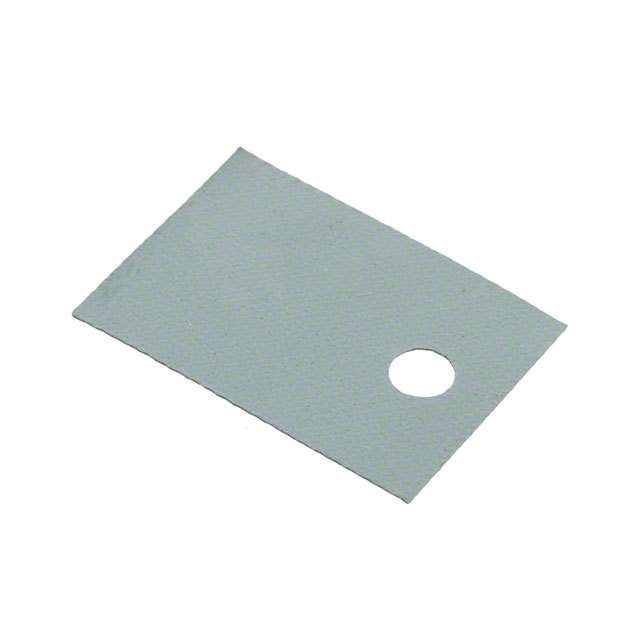

Product Images
