TO-220 Anodized Aluminium Heat Sink, 16.7°C/W Thermal Resistance

Aavid

530613B00000G

Name: 530613B00000G Aavid
Brand: Aavid
SKU: 530613B00000G

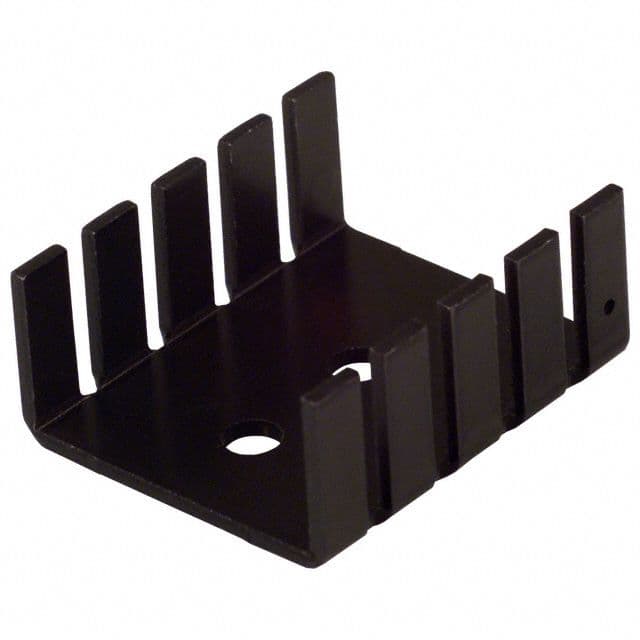

TO-220 Anodized Aluminium Heat Sink, 16.7°C/W Thermal Resistance

This TO-220 heat sink is made from anodized aluminium with a thermal resistance of 16.7°C/W. It has a package quantity of 500 and is RoHS compliant. The heat sink measures 29.97mm in length, 1inch in width, and 12.7mm in height, with a depth of 25.4mm and a height off base of 0.5inch. It is designed for screw mount applications and is not radiation hardened.

PackageTO-220

MountingBolt, Screw

Quick Jump:

Technical Specifications

Aavid 530613B00000G technical specifications.

General

Package/Case	TO-220
Color	Black
Contact Plating	Tin, Matte
Depth	25.4mm
Finish	Anodized
Height	12.7mm
Height Off Base	0.5inch
Lead Free	Lead Free
Length	29.97mm
Material	Aluminium, Anodized
Mount	Bolt, Screw
Natural Thermal Resistance	16.7°C/W
Package Cooled	TO-220
Package Quantity	500
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	5306
Shape	Fins, Rectangular
Thermal Resistance @ Forced Air Flow (100 LFM)	6°C/W
Type	Passive
Width	1inch
