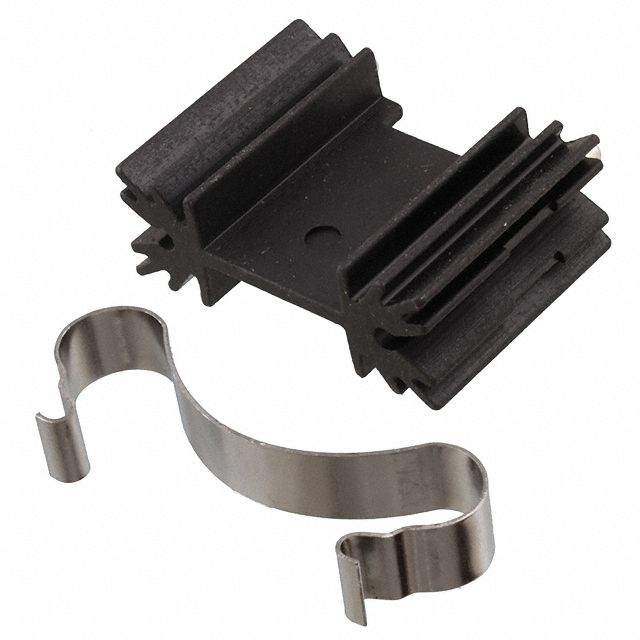

Passive heat sink designed for TO-220 packages, featuring extruded aluminum construction with a black anodized finish. Offers a natural thermal resistance of 13°C/W and 4°C/W under forced air flow (100 LFM). This RoHS compliant component measures 1 inch in length, 1.375 inches in width, and 25.4mm in height with a 0.5-inch height off base. Mounting options include clip and PC pin.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aavid 533002B02551G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Color | Black |
| Finish | Anodized |
| Height | 25.4mm |
| Height Off Base | 0.5inch |
| Lead Free | Lead Free |
| Length | 1inch |
| Material | Aluminium, Anodized |
| Mount | Clip, PC Pin |
| Natural Thermal Resistance | 13°C/W |
| Package Cooled | TO-220 |
| Package Quantity | 750 |
| RoHS Compliant | Yes |
| Shape | Fins, Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 4°C/W |
| Type | Passive |
| Width | 1.375inch |
| RoHS | Compliant |
