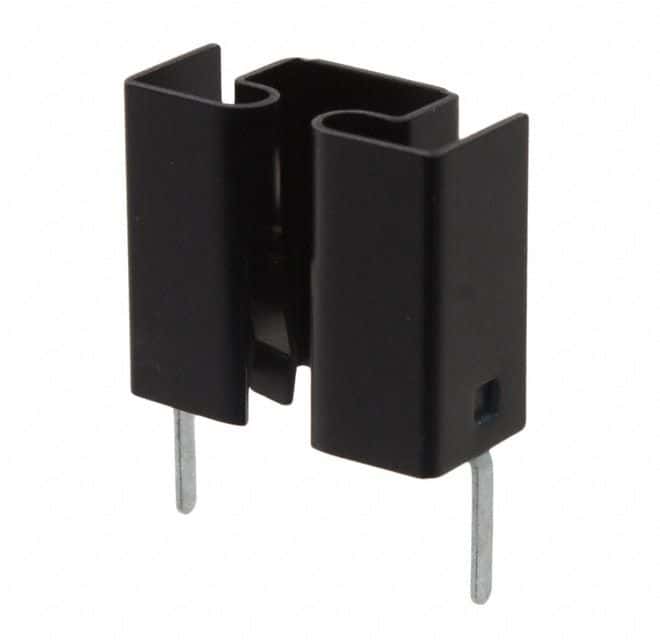

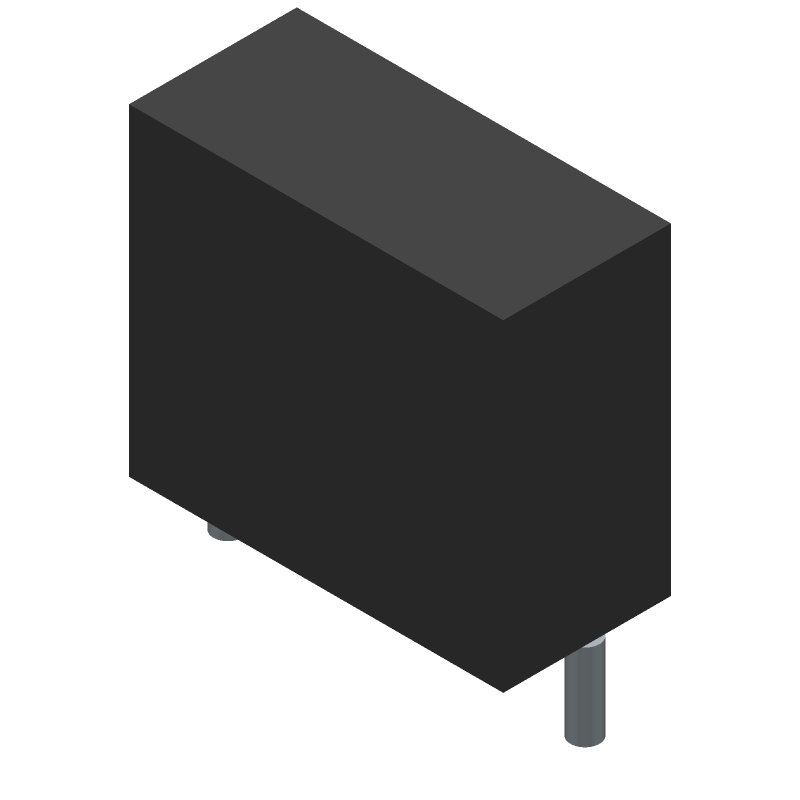

Passive heat sink designed for TO-220 packages, featuring a natural thermal resistance of 21.2°C/W and 6°C/W under 100 LFM forced air. Constructed from anodized aluminum with a black finish, this rectangular component offers a 0.75-inch length, 0.81-inch width, and 0.39-inch height off base. It utilizes thru-hole mounting with PC pins and is RoHS compliant.
PackageTO-220
MountingClip, PC Pin
Quick Jump:
Technical Specifications
Aavid 574502B03300G technical specifications.
General
Package/Case
TO-220
Color
Black
Contact Plating
Tin, Matte
Depth
9.9mm
Finish
Anodized
Height
19.05mm
Height Off Base
0.39inch
Lead Free
Lead Free
Length
0.75inch
Material
Aluminium, Anodized
Mount
Clip, PC Pin
Natural Thermal Resistance
21.2°C/W
Package Cooled
TO-220
Package Quantity
1000
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
5745
Shape
Rectangular
Thermal Resistance @ Forced Air Flow (100 LFM)
6°C/W
Type
Passive
Width
0.81inch
Compliance
RoHS
Compliant
Datasheet
Aavid 574502B03300G Datasheet
Download the complete datasheet for Aavid 574502B03300G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
