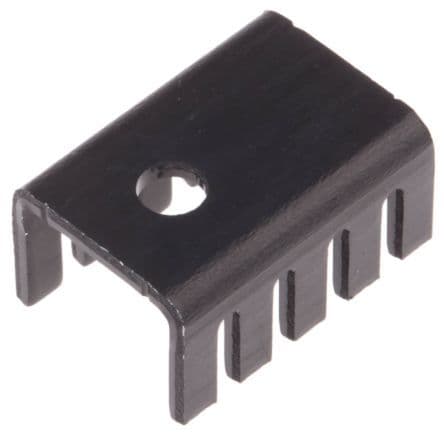

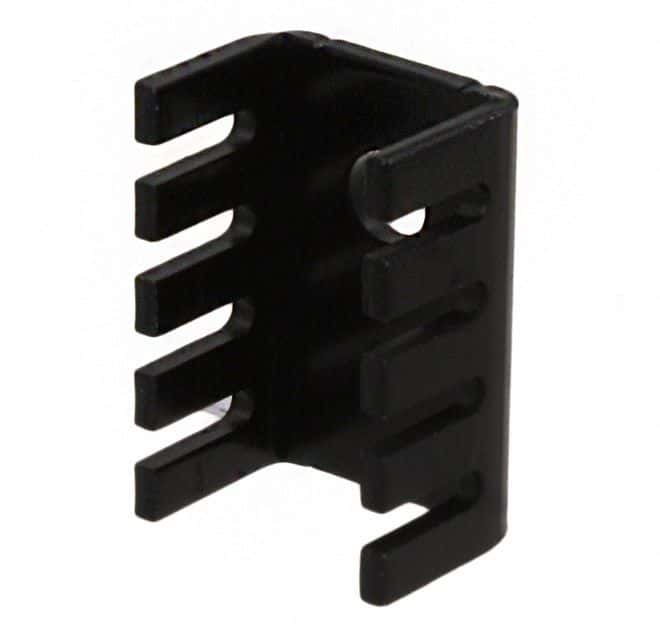

Passive heat sink for TO-220 packages, featuring a slim channel design with screw mounting. Constructed from anodized aluminum, this heat sink offers a natural thermal resistance of 25.9°C/W and 12°C/W under forced air flow (100 LFM). Dimensions include a length of 13.21mm, width of 0.52 inches (13.21mm), and height of 9.652mm. The black anodized finish enhances thermal performance and durability. This RoHS compliant component is supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aavid 577102B00000G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Color | Black |
| Depth | 9.52mm |
| Finish | Anodized |
| Height | 9.652mm |
| Height Off Base | 0.375inch |
| Lead Free | Lead Free |
| Length | 13.21mm |
| Material | Aluminium, Anodized |
| Mount | Bolt |
| Natural Thermal Resistance | 25.9°C/W |
| Package Cooled | TO-220 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shape | Fins, Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 12°C/W |
| Type | Passive |
| Width | 0.52inch |
| RoHS | Compliant |
