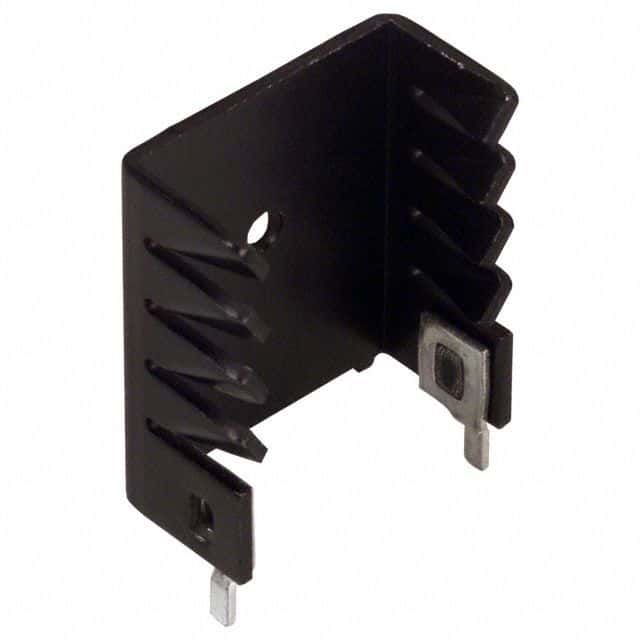

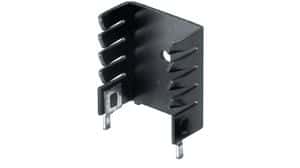

Passive TO-220 heat sink, featuring a twisted fin design for enhanced thermal performance. Constructed from anodized aluminum, this component offers a natural thermal resistance of 13.4°C/W and 4°C/W under 100 LFM forced air. It supports TO-220 packages and mounts via bolt, PC pin, or solder. Dimensions include a 24.74mm length, 29.972mm height, and 12.7mm depth, with a black anodized finish. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aavid 593002B03400G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Color | Black |
| Depth | 12.7mm |
| Finish | Anodized |
| Height | 29.972mm |
| Height Off Base | 0.5inch |
| Lead Free | Lead Free |
| Length | 24.74mm |
| Material | Aluminium, Anodized |
| Mount | Bolt, PC Pin, Solder |
| Natural Thermal Resistance | 13.4°C/W |
| Package Cooled | TO-220 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shape | Fins, Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 4°C/W |
| Type | Passive |
| Width | 0.942inch |
| RoHS | Compliant |
