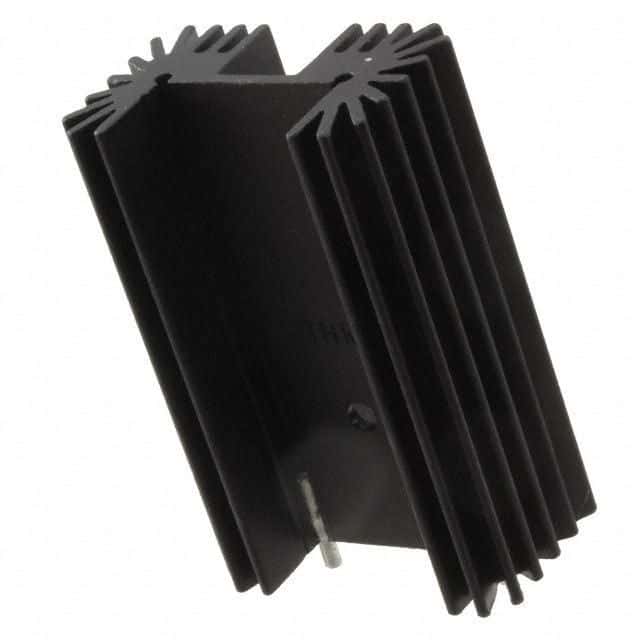

Extruded aluminum pin fin array heat sink designed for TO-220 packages. Features a black anodized finish for enhanced thermal performance and corrosion resistance. Offers a natural thermal resistance of 2.7°C/W and 1.5°C/W at 100 LFM forced air flow. This passive heat sink measures 41.91mm in length, 63.5mm in height, and 25.4mm in depth, with a width of 1.65 inches. Mounting options include bolt, PC pin, and screw. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aavid 6400BG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Color | Black |
| Depth | 25.4mm |
| Finish | Anodized |
| Height | 63.5mm |
| Height Off Base | 1inch |
| Lead Free | Lead Free |
| Length | 41.91mm |
| Material | Aluminium |
| Mount | Bolt, PC Pin, Screw |
| Natural Thermal Resistance | 2.7°C/W |
| Package Quantity | 250 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shape | Fins, Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 1.5°C/W |
| Type | Passive |
| Width | 1.65inch |
| RoHS | Compliant |
