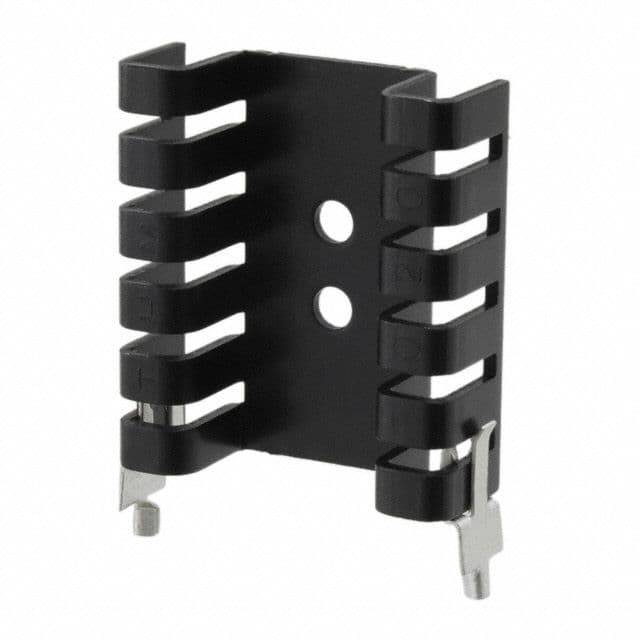

Passive heat sink for TO-220 packages, featuring a folded-back, screw-mount design for efficient thermal management. Constructed from black anodized aluminum, this component offers a natural thermal resistance of 8.7°C/W and 3°C/W under 100 LFM forced air. Dimensions include a 33.02mm length, 36.83mm height, and 11.94mm depth, with a 0.47-inch height off base. Mounting is achieved via bolt and PC pin.
PackageTO-2
MountingBolt, PC Pin
Quick Jump:
Technical Specifications
Aavid 7020B-MTG technical specifications.
General
Package/Case
TO-2
Color
Black
Depth
11.94mm
Finish
Anodized
Height
36.83mm
Height Off Base
0.47inch
Lead Free
Lead Free
Length
33.02mm
Material
Aluminium, Anodized
Mount
Bolt, PC Pin
Natural Thermal Resistance
8.7°C/W
Package Cooled
TO-220
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shape
Fins, Rectangular
Thermal Resistance @ Forced Air Flow (100 LFM)
3°C/W
Type
Passive
Width
1.3inch
Compliance
RoHS
Compliant
Datasheet
Aavid 7020B-MTG Datasheet
Download the complete datasheet for Aavid 7020B-MTG to view detailed technical specifications.
