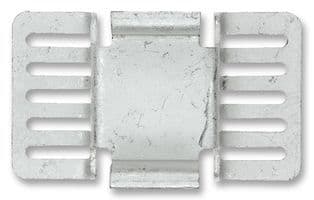

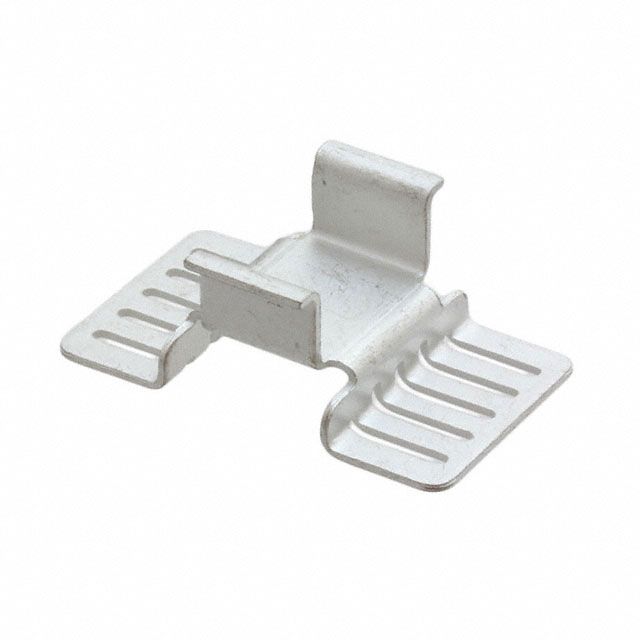

Passive heat sink designed for TO-263, D2 PAK, SO-10, and MO-184 SMD packages. Features a copper construction with matte tin finish and plating, offering a natural thermal resistance of 15°C/W and 5°C/W at 100 LFM forced air. This surface mount component has a rectangular fin shape, a depth of 14.99mm, and a height of 9.52mm. It is RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aavid 7106DG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263 |
| Contact Plating | Tin, Matte |
| Depth | 14.99mm |
| Finish | Tin |
| Height | 9.52mm |
| Height Off Base | 0.375inch |
| Lead Free | Lead Free |
| Length | 25.91mm |
| Material | Copper, Tin, Matte, Aluminium |
| Mount | Surface Mount |
| Natural Thermal Resistance | 15°C/W |
| Package Quantity | 500 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7106 |
| Shape | Fins, Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 5°C/W |
| Type | Passive |
| Width | 1.02inch |
| RoHS | Compliant |
Download the complete datasheet for Aavid 7106DG to view detailed technical specifications.
