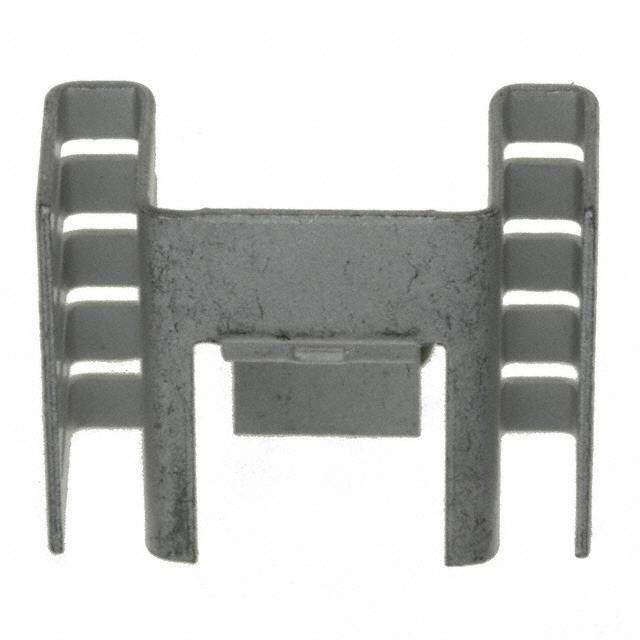

Passive heat sink designed for TO-263 SMD packages. Features a finned, rectangular copper and aluminum construction with matte tin plating for efficient thermal dissipation. Offers a natural thermal resistance of 11°C/W and 3°C/W at 100 LFM forced air. Surface mountable with dimensions of 25.4mm length, 19.38mm depth, and 11.43mm height. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aavid 7109DG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263 |
| Color | Black |
| Contact Plating | Tin, Matte |
| Depth | 19.38mm |
| Finish | Tin |
| Height | 11.43mm |
| Height Off Base | 0.45inch |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Material | Copper, Tin, Matte, Aluminium |
| Mount | Surface Mount |
| Natural Thermal Resistance | 11°C/W |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7109 |
| Shape | Fins, Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 3°C/W |
| Type | Passive |
| Width | 1inch |
| RoHS | Compliant |
