The ABB PSR37-600-70 is a 600V power relay with a current rating of 37A. It has a package case size of 600 and measures 153mm in length, 54mm in width, and 187mm in depth. The relay operates within a temperature range of -25°C to 60°C and is rated for use at 600V. It is not Reach SVHC compliant.
Package600
Voltage Rating600V
Current Rating37A
MountingExternal
Quick Jump:
Technical Specifications
ABB PSR37-600-70 technical specifications.
General
| Package/Case | 600 |
| Control Voltage | 240V |
| Current Rating | 37A |
| Length | 153mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | External |
| Operating Supply Voltage | 600V |
| Overall Depth | 187mm |
| Ratings | IP10 |
| Reach SVHC Compliant | No |
| Series | PSR |
| Voltage Rating | 600V |
| Width | 54mm |
Compliance
| RoHS | Compliant |
Datasheet
ABB PSR37-600-70 Datasheet
Download the complete datasheet for ABB PSR37-600-70 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

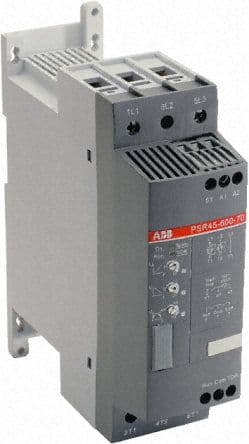

Product Images
