PackageNonstandard
MountingSurface Mount
Inductance1.5uH
Quick Jump:
Technical Specifications
Abracon ASPI-0630LR-1R5M-T15 technical specifications.
General
Package/Case
Nonstandard
Core Material
Carbonyl Powder
DC Resistance (DCR)
12mR
Height
3mm
Inductance
1.5uH
Length
7.2mm
Max DC Current
14A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
14A
Series
ASPI-0630LR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
6.65mm
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-0630LR-1R5M-T15 Datasheet
Download the complete datasheet for Abracon ASPI-0630LR-1R5M-T15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

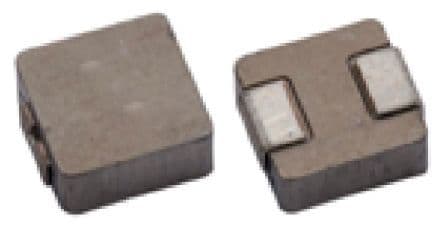

Product Images
