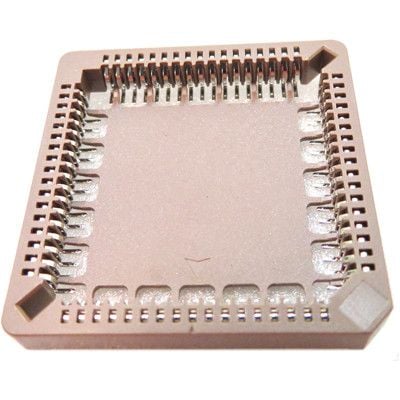

The PLCC-68-AT-SMT surface mount connector from Adam Equipment features a package quantity of 19 connectors per package, packaged in a rail or tube. It has a flammability rating of UL94 V-0 and is lead free. The connector has a termination of solder and a contact finish of TIN. It is designed for use in surface mount applications and has a pitch of 2.54mm. The operating temperature range is from -55°C to 105°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Adam Equipment PLCC-68-AT-SMT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Adam Equipment PLCC-68-AT-SMT technical specifications.
| Package/Case | PLCC |
| Contact Finish - Mating | TIN |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Positions | 68 |
| Package Quantity | 19 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Series | PLCC |
| Termination | Solder |
| RoHS | Compliant |
