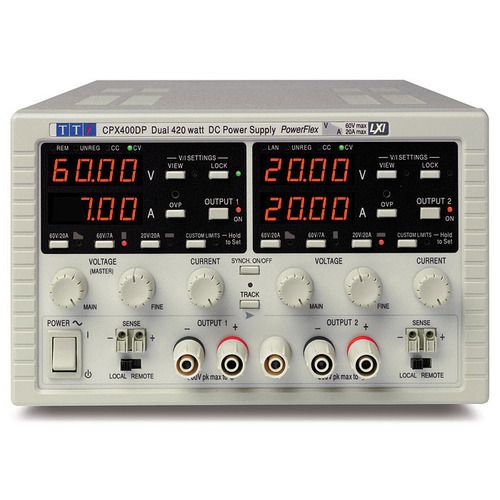

This dual output DC power supply from Aim-Tti features a digital display and operates from a 240V AC input. It has a maximum output current of 20A and a maximum output voltage of 60V. The supply can dissipate up to 420W of power and has a temperature range of 5°C to 40°C. The outputs are connected via binding post terminals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aim-Tti CPX400D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Aim-Tti CPX400D technical specifications.
| Display Type | Digital |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 5°C |
| Max Output Current | 20A |
| Max Output Voltage | 60V |
| Min Output Voltage | 0V |
| Max Power Dissipation | 420W |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 110V |
| Number of Outputs | 2 |
| Operating Supply Voltage | 240V |
| Output Connector | Binding Post Terminal |
| Output Current | 20A |
| Output Voltage | 60V |
| Reach SVHC Compliant | No |
| Series | CPX |
| Weight | 13.9lb |
| RoHS | Compliant |
Download the complete datasheet for Aim-Tti CPX400D to view detailed technical specifications.
