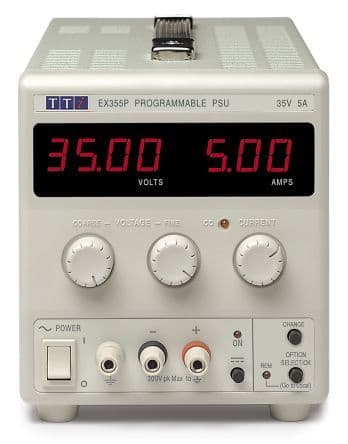

The EX355P is a digital power supply with a maximum output voltage of 35V and a maximum output current of 5A. It has a maximum power dissipation of 175W and operates within a temperature range of 5°C to 40°C. The supply is designed for use with RS-232 interfaces and features a spring-loaded output connector. It is part of the EX-R series from Aim-Tti and is not compliant with SVHC regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aim-Tti EX355P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Display Type | Digital |
| Height | 160mm |
| Interface | RS-232 |
| Length | 320mm |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 5°C |
| Max Output Current | 5A |
| Max Output Voltage | 35V |
| Min Output Voltage | 0V |
| Max Power Dissipation | 175W |
| Max Supply Voltage (AC) | 230V |
| Min Supply Voltage (AC) | 230V |
| Number of Characters | 8 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 230V |
| Output Connector | Spring Loaded Connector |
| Output Current | 5A |
| Output Voltage | 35V |
| Reach SVHC Compliant | No |
| Series | EX-R |
| Weight | 3kg |
| Width | 140mm |
| RoHS | Compliant |
