Frequency24.576MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Aker C6S-24.576-12-3030-X technical specifications.
General
Package/Case
SMD/SMT
Frequency
24.576MHz
Frequency Stability
30ppm
Frequency Tolerance
30ppm
Height
1mm
Length
6mm
Load Capacitance
12pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Reach SVHC Compliant
No
Series Resistance
40R
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Aker C6S-24.576-12-3030-X Datasheet
Download the complete datasheet for Aker C6S-24.576-12-3030-X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

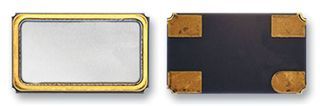

Product Images
