Shielded multi-conductor cable featuring 5 cores of 22 AWG stranded copper conductors, each with 7 strands of 30 AWG. The cable boasts a grey PVC jacket and PVC insulation, with an insulation diameter of 0.204 inches and a thickness of 0.032 inches. Operating within a temperature range of -20°C to 80°C, this 100-foot spool of cable is rated for 300V and is RoHS compliant. Approvals include UL and CSA.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1295CSL005 technical specifications.
General
Approvals
UL, CSA
Package/Case
100
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.204inch
Insulation Material
PVC
Insulation Thickness
0.032inch
Jacket Material
PVC
Length
100foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
5
Number of Cores
5
Number of Strands
7
Outside Diameter
5.08mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Stranding
7 x 30
Voltage
300V
Voltage Rating
300V
Weight
2.86lb
Wire/Cable Gauge
22AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Not Compliant
Datasheet
Alpha Wire 1295CSL005 Datasheet
Download the complete datasheet for Alpha Wire 1295CSL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

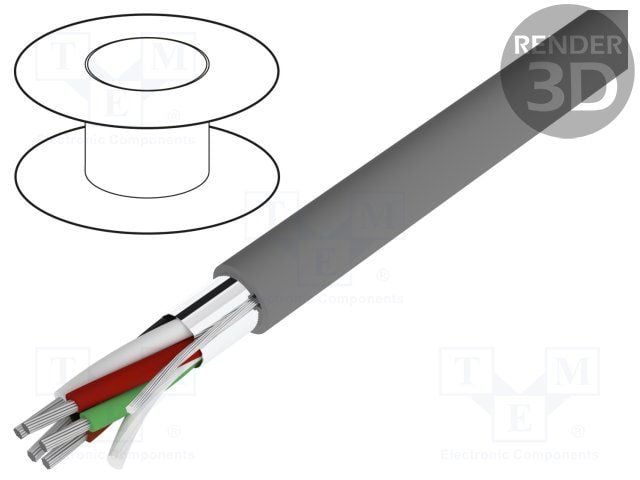

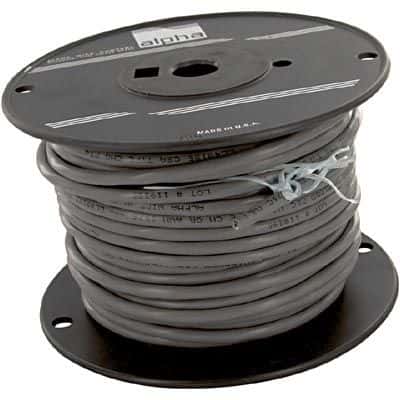

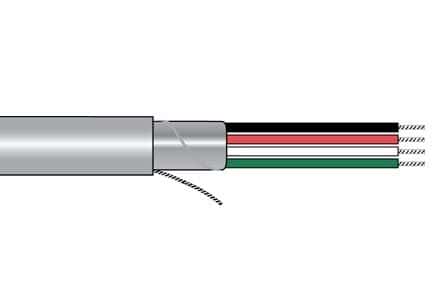

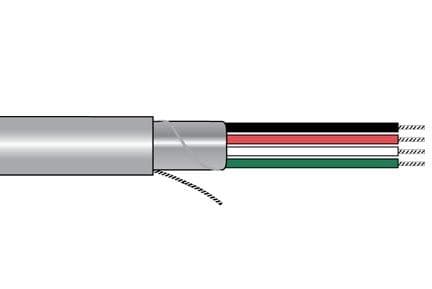

Product Images
