Alpha Wire
1299/25CSL002
25-Conductor Shielded Multi-Conductor Cable, 22AWG, 300V, 500ft Grey PVC Jacket
This 25-conductor shielded multi-conductor cable features a 22AWG copper conductor, 0.032inch PVC insulation, and a 0.368inch grey PVC jacket. It has a maximum operating temperature of 80°C and a minimum operating temperature of -20°C. The cable is UL and CSA approved, RoHS compliant, and available on a 500ft spool.
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Alpha Wire 1299/25CSL002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Alpha Wire 1299/25CSL002 technical specifications.
General
| Approvals | UL, CSA |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.368inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.032inch |
| Jacket Material | PVC |
| Length | 500foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 25 |
| Number of Cores | 25 |
| Outside Diameter | 9.4mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 7 x 30 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 50.26lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 1299/25CSL002 Datasheet
Download the complete datasheet for Alpha Wire 1299/25CSL002 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

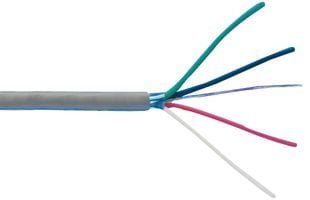

Product Images
