Hook-up wire featuring 26AWG stranded copper conductor, 7x34 stranding, and yellow PVC insulation. Rated for 600V, this wire operates from -55°C to 105°C with a 0.039-inch insulation diameter and 0.01-inch insulation thickness. The 1000-foot spool is RoHS compliant and suitable for external mounting.
Package600
Voltage600V
Voltage Rating600V
MountingExternal
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Alpha Wire 1853YL001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Alpha Wire 1853YL001 technical specifications.
General
| Package/Case | 600 |
| Color | Yellow |
| Conductor Material | Copper |
| Insulation Diameter | 0.039inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.01inch |
| Jacket Material | PVC |
| Length | 1000foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | External |
| Outside Diameter | 0.99mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MIL-W-16878E/1 and MIL-W-76B Type LW, 1853 |
| Stranding | 7 x 34 |
| Voltage | 600V |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 600V |
| Weight | 1.5lb |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 1853YL001 Datasheet
Download the complete datasheet for Alpha Wire 1853YL001 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

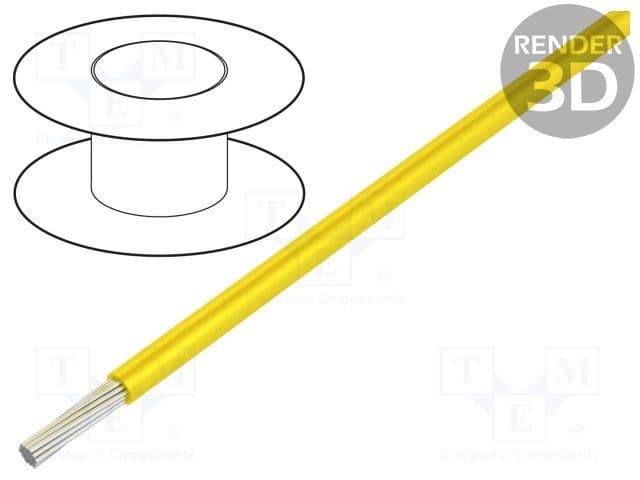

Product Images
