Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1896/5CSL005 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | 100 |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.23inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.02inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 5 |
| Number of Cores | 5 |
| Number of Strands | 7 |
| Outside Diameter | 0.23inch |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 7 x 28 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 3.45lb |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Not Compliant |
Datasheet
Alpha Wire 1896/5CSL005 Datasheet
Download the complete datasheet for Alpha Wire 1896/5CSL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

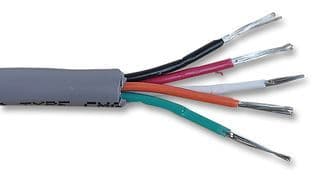

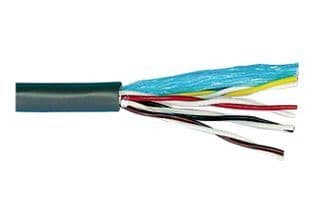

Product Images
