Alpha Wire
1899/3CSL002

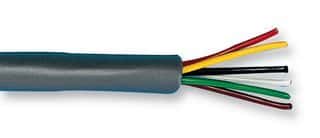

Multicore Cable, Control, Unscreened, 3 Core, 16 AWG, 1.31 mm, 500 ft, 152.4 m
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1899/3CSL002 technical specifications.
General
Approvals
UL, CSA
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.236inch
Insulation Material
PVC
Insulation Thickness
0.02inch
Jacket Material
PVC
Length
500foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
3
Number of Cores
3
Outside Diameter
6.3mm
Package Quantity
1
Reach SVHC Compliant
No
RoHS Compliant
Yes
Stranding
19X29
Voltage
300V
Voltage Rating
300V
Wire/Cable Gauge
16AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 1899/3CSL002 Datasheet
Download the complete datasheet for Alpha Wire 1899/3CSL002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
