18AWG multi-pair cable featuring 2 pairs (4 conductors) of stranded copper, 16 x 30 stranding. Insulated with PVC to a 0.035-inch thickness, offering a 0.333-inch insulation diameter. Shielded construction with a grey PVC jacket, suitable for 300V DC rated voltage and 150V voltage rating. Operates within a temperature range of -20°C to 80°C, supplied on a 500-foot spool.
Voltage300V
Voltage Rating150V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 2242CSL002 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.333inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.035inch |
| Jacket Material | PVC |
| Length | 500foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Outside Diameter | 8.64mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 16 x 30 |
| Voltage | 300V |
| Voltage Rating | 150V |
| DC Rated Voltage | 300V |
| Weight | 28.89lb |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 2242CSL002 Datasheet
Download the complete datasheet for Alpha Wire 2242CSL002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

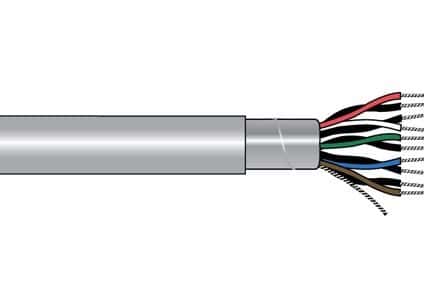

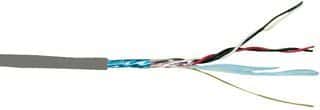

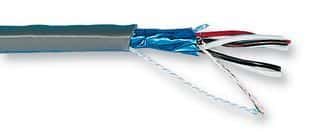

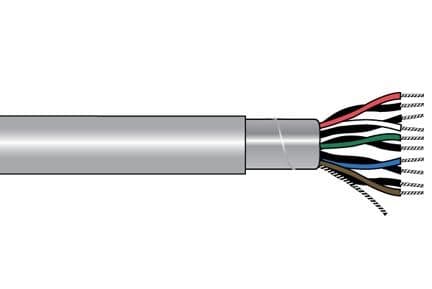

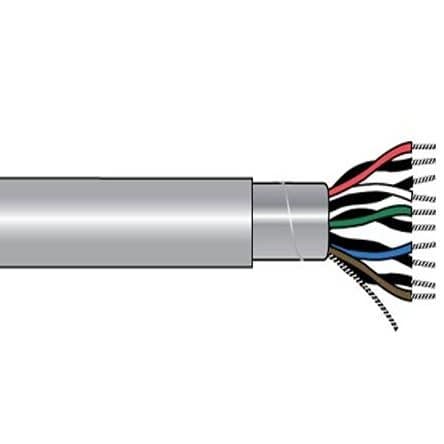

Product Images
